Alewijnse completes electrical fit-out of innovative TSHD Krakesandt

Systems integrator Alewijnse has completed the comprehensive electrical and automation installation on board the new build trailing suction hopper dredger (TSHD) Krakesandt.

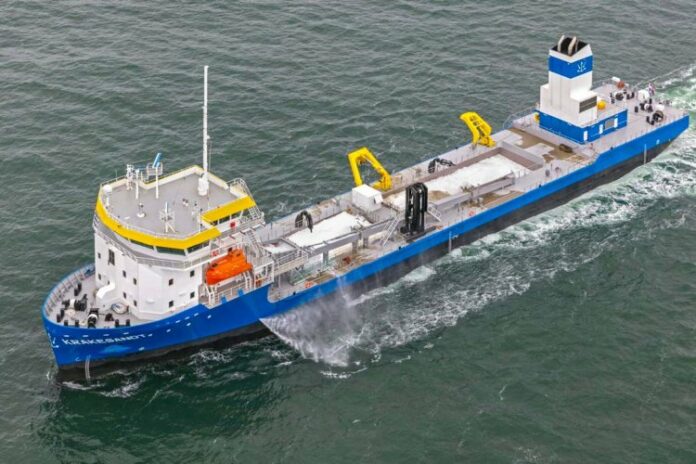

Alewijnse completes electrical fit-out of innovative TSHD Krakesandt
Photo: Alewijnse

The innovative vessel is one of the only diesel-electric TSHDs that specializes in sand and gravel extraction at sea.

The Krakesandt is the second advanced dredging project that Alewijnse has undertaken for Thecla Bodewes Shipyards for its client construction supplier De Hoop Terneuzen. The first was the Krakesandt’s sister vessel, Anchorage.

Once again, Alewijnse was responsible for the design, building, installation and commissioning of the switchboards, consoles and the dedicated alarm, monitoring and control systems. It also undertook the design, engineering, supply and commissioning of the dredging automation system, including visualisation, monitoring and process control.

The Krakesandt, named after a sandbank off the coast of Cadzand first mentioned in the 14th century, has been built entirely in the Netherlands. The vessel has a length of 105.90 meters, is 15.85 meters wide and has a draught of 6.94 meters. Designed to dredge sand and gravel aggregates from the seabed, the energy efficient vessel has a single suction arm and a storage capacity of 3000m3. In addition to enabling smart power management, the use of electric propulsion increases propeller efficiency during dredging, sailing and maneuvering, which in turn optimizes energy and fuel consumption and reduces emissions.

For the control and monitoring of the dredging process, Barkmeijer Shipyards, part of Thecla Bodewes, has collaborated with Alewijnse to develop an intelligent and integrated bus-driven system. In addition to delivering high dredging performance, its capabilities mean that a crew of just 7 or 8 is all that is required to manage, load and unload the vessel. This ground-breaking system is now being made available to other clients via Alewijnse. Elsewhere on board, the diesel-electric power plants, delivered by D&A Electric, significantly reduce energy consumption and emissions.

Several other advanced automation systems are also being integrated on board. These include an alarm and monitoring system (AMS) for fire door monitoring and remote tank sounding, and a bridge operating system (BOS) for the control and monitoring of the lighting systems. Also being fitted is a dredge control system (DCS) for the control and monitoring of the remote controlled dredging valves, position indication and control of the swell compensator, overflow, pumps, screen/hopper loading system and the onboard hydraulics. A ship system control (SSC) has also been specified for control and monitoring of the trim valves.

Alewijnse is also installing its in-house draught and loading system (ADLS) for continuous measurement of the equipment’s depth and the calculation of the actual load, trim and list. The Alewijnse suction tube system (ASTS) combines software and hardware for the measurement, calculation, visualisation and monitoring of the hopper dredger’s suction tube position under water.
